Extended microscope Olympus IX-83
Annotation with specifications:
Microscope body: Olympus IX83 P2ZF
Software: cellSens / Olympus Device List
Camera: Andor Zyla sCMOS
XY stage: Märzhäuser Tango
Z-axis: Motorized IX3-CBH
Mirror turret / deck: IX3 Mirror Turret, Deck 1 upper
ZDC: IX3-ZDC2
Transmitted light source: IX3 Halogen Lamp
Objectives:
Olympus UPLXAPO10X objective: magnification 10×, NA 0.40, working distance WD 3.1 mm, objective field number 26.5, cover glass thickness 0.17 mm, immersion medium air/dry objective.
Olympus UPLXAPO60XO objective: magnification 60×, NA 1.42, working distance WD 0.15 mm, objective field number 26.5, cover glass thickness 0.17 mm, immersion medium oil, objective type Extended Apochromat, parfocal distance 45 mm, back focal plane position BFP −19.1 mm, mounting thread W20.32 × 0.706 RMS.
CoolLED pE-4000 fluorescence illumination system: excitation light source for reflected fluorescence on the Olympus IX83 microscope. It is a multi-channel LED source that enables selective activation of individual excitation wavelengths according to the fluorophore used and the corresponding filter cube. Available excitation LED channels according to the controller: 365, 385, 405, 435, 460, 470, 490, 500, 525, 550, 580, 595, 635, 660, 740 and 770 nm, plus White mode.

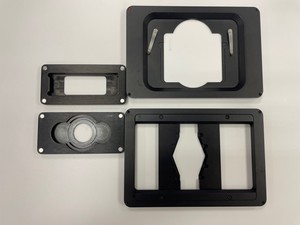

Ibidi heating system:
The system includes: universal mounting frame for µ-Dishes 35 mm and µ-Slides, temperature control unit, heated plate for multi-well formats, and one insert with a heated lid. The heating and incubation system is designed for live-cell imaging applications, including chemotaxis, angiogenesis and cell migration.
Room: CH2-08
Contact: katarina.gaplovskauniba.sk, B1-523

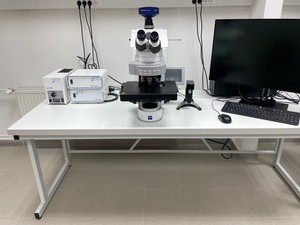

Fluorescence microscope ZEISS Axio Imager typ 2
Annotation with specifications:
Microscope stand – Axio Imager.Z2
Transmitted light illumination – Halogen lamp 12 V / 100 W / GY6.35
RL fluorescence illumination – Illuminator HXP 200
Scanning stage – 130 × 85 STE
Trinocular tube and magnification changer
Binocular phototube – 30° SF25 Bio
Eyepieces – PL 10×/23 Br. Foc
DIC contrast:
DIC slider EC PN 10×, 20× / PA 20×
DIC slider PA 40×/1.3
DIC slider Plan-Apo 63×/1.40
Objectives:
Plan-Neofluar 10×/0.3 M27
Plan-Apochromat 40×/1.3 Oil DIC UVVIS-IR
Plan-Apochromat 63×/1.40 Oil
Plan-Apochromat 100×/1.4 Oil DIC
Achromatic-aplanatic condenser – 0.9 H D Ph DIC mot
Camera with video adapter – Camera Axiocam 506 mono
Software: ZEN 3.0 Pro, ZEN Module Z Stack, Time Lapse, Extended Focus
Filter characteristics:
Filter set 49: DAPI, BFP, Hoechst 33258, etc. (G 365, FT 395, BP 445/50)
Filter set 38 HE: Alexa 488, CFP, eGFP, etc.(BP 470/40, FT 495, BP 525/50)
Filter set 20 HE: Alexa 555, Cy3 (BP 546/12, FT 560, BP 607/80)
Filter set 46: eYFP, mNeonGreen (BP 500/20, FT 515, BP 535/30)
Filter set 64 HE: mCherry, mRFP, Alexa 568(BP 587/2 5, FT 605, BP 647/70)
Filter set 50: Alexa 647, Cy5, DyLight649 (BP 640/30, FT 660, BP 690/50)
Room: CH2-08
Contact: katarina.gaplovskauniba.sk, B1-523

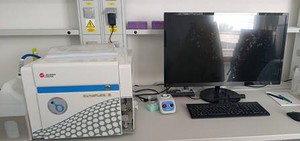

Flow cytometer CytoFLEX S System
Annotation with specifications: Flow cytometer Beckman Coulter CytoFLEX S with CytExpert 2.4 analysis software, equipped with four lasers (blue 488 nm, red 638 nm, violet 405 nm, near UV 375 nm). Fluorescence channels and filters are summarized in the table. The instrument enables detection of particles ranging approximately from 100 nm to 100 μm, depending on the sample type. Measurements can be performed from tubes and, upon agreement, also from 96-well plates.
Lasers (wavelenght) | Fluorescence filters (detection wavelenghts) |
Violet (405 nm) | PB450 (450/45) |
KO525 (525/40) | |
Violet610 (610/20) | |
nearUV (375 nm) | DAPI (450/45) |
HoechstR (675/30) | |
Red (638 nm) | APC-A700 (712/25) |
APC-A750 (780/60) | |
APC (660/10) | |
Blue (488 nm) | ECD (610/20) |
PE (585/42) | |
FITC (525/40) | |
PC5.5 (690/50) |
Room: B1-526b
Contact: petkova21uniba.sk, B1-555

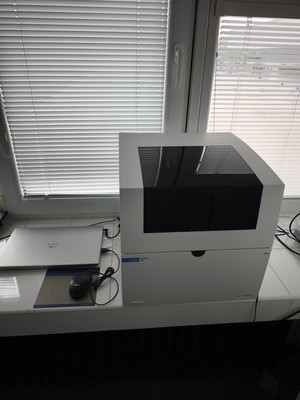

Bioanalyzer 4200 TapeStation
Annotation with specifications:
The 4200 TapeStation system is an established, high-throughput automated electrophoresis platform for nucleic acid sample quality control up to 96 samples per run. It allows analysis of DNA and RNA concentration, size, and integrity for applications in next-generation sequencing, biobank, or vaccine development workflows.
Room: B1-524
Contact: regina.sepsiova@uniba.sk, B1-520

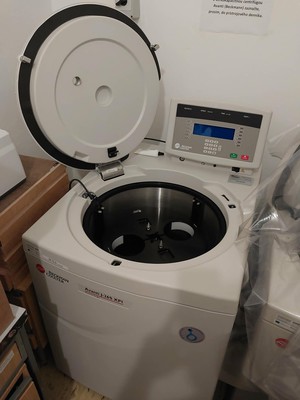

Large-capacity centrifuge with an elutriation rotor
Annotation with specifications: Large-capacity refrigerated centrifuge Beckman Coulter Avanti J-26S XPI series with elutriation rotor J-E 5.0 (maximum speed 5000 rpm) and one large elutriation chamber, equipped with a stroboscope and a peristaltic pump. Allows the separation of particles with a size of 1 – 100 μm.
Room: B1-561
Contact: cervenak3uniba.sk, CH1-202

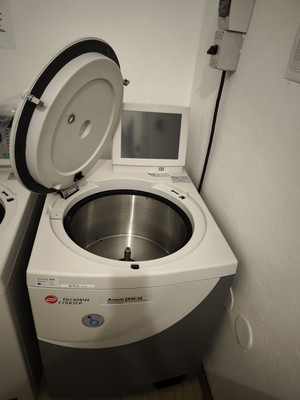

Large-capacity centrifuge with a set of standard rotors
Annotation with specifications:
The Avanti JXN-26 centrifuge (Beckman Coulter) is a large-capacity, high-speed, refrigerated centrifuge equipped with a set of rotors for processing samples of various volumes up to a maximum volume of 6 liters (rotors: JLA-8.1, JA-14.50, JA-25.50, JLA-16.250). It allows saving various centrifugation programs and locking them using a password.
Room: B1-516
Contact: regina.sepsiova@uniba.sk, B1-520
